QIC W25 Drylining Trim RAL 9010 (White) 3000mm

In stock
SKU
QIC_W25
£16.31 £13.59
QIC W25 Drylining Trim RAL 9010 (White) 3000mm is available to buy in increments of 1
Product Information

QIC W25 Drylining Trim RAL 9010 (White) 3000mm

Customer Reviews
No reviews yet on this product
Details

Application

All items are provided as standard in White – RAL 9010. If you require a different finish, please get in touch (prices may vary).

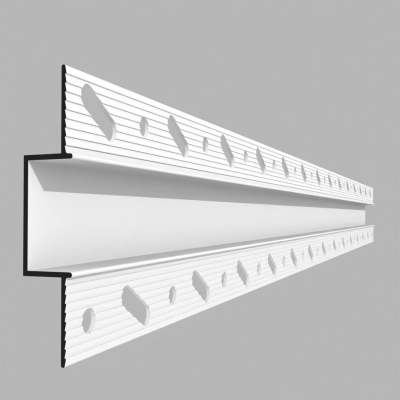

Type W trims are used to create horizontal or vertical linear recess features in plasterboard walls, upstands or ceilings. Inserts can be fitted into the recess to create visual effects, or as part of a retaining system for wall coverings.

Type W trims can be curved in section to co-ordinate with both concave and convex partitions, walls or ceilings.

Product Information

Supplied in 3000mm lengths, extruded from architectural grade aluminium alloy to BS 1474. Pre-punched with diagonal fixing slots and holes in the plastering fin suitable for fixing by drywall screws. The standard finishes are either white polyester powder coating to RAL 9010, 20% Gloss, or unpainted for onsite painting/spraying.

QIC cannot accept any responsibility for the painted finish of products supplied unpainted. Non-standard lengths, factory curving and alternative factory applied finishes are available to special order.

Techinical Details

Designed specifically for use as part of a conventional dry wall, partition or ceiling system with either single or multiple layers of plasterboard.

Framework can be of metal stud, timber or other suitable medium provided that the structural requirements are met. Vertical studs should never be greater than 600mm apart. Trims are designed to create aesthetic appeal within dry lining systems and are not intended to improve structural performance. Construction depends upon the type of trim being used and typical application examples are shown on the data sheets.

Trims should always be supported by structural members, with additional framing provided where necessary. Double layers of plasterboard will result in greater rigidity. Trims should always be backed by a layer of plasterboard and never fixed directly in contact with the structural framing. The use of additional layers of plasterboard may be necessary to achieve certain designs.

Dimensions: W25 10 x 67mm

More Information
More Information
Manufacturer QIC Trims
Availability Generally available in 2 working days.
